The WT-400 electrolytic tinning line is suitable for: soft copper wire from 1.2mm to 2.6mm.
Wire material：copper wire
Inlet diameter ：φ1.2mm - φ2.6mm Soft wire
Number of production lines：one
Production speed： MAX. 16 m/s
Suitable material：Pure tin (99.9%)
Thickness of tin ：1-20um
Spool Dimensions：φ630-φ800mm
Plating current rod groove diameter：400mm.25 groove
Degreasing current rod groove diameter： 400mm.18 groove
Max.temp for environment： 40-50°C
Wiring mode：The wire passes through the production line from left to right in the form of a U-shape
Drive control：one traction for degreasing, two traction for electroplating, are driven directly by the three-phase motor, the two motors through the tension box to achieve synchronization.
Total installed power：175kW
Power supply voltage：3×380V +10%/-5%/+PE+N
Power frequency ：60HZ +/-1%
Control voltage ：220V AC/24V DC
Compressed air ：0.6 mpa
Compressed air requirements: no water and no oil
Production line composition:
Electroplating machine： incoming line system + electrolytic degreasing + electrolytic degreasing + tension device 1+ pickling activation tank + electroplating tin 1 tank + tension device 2+ plating tank 2 tanks + five-stage countercurrent water washing + electrical control system + operating table
Pay-off machine：800-630mm drum pay-off machine
Take-up machine：plum drop machine (according to customer drop frame)
Auxiliary device：Filter (20T/h*2)
Other: cables and wires inside the device
Product advantages：
1, Electrolytic tin plating machine chooses controllable power supply, leading to high tin plating efficiency , good tightness of the finished product, good adhesion of the finished product after drawing, low consumption of tin.
2, After alkali washing, the surface of the wire before plating will be clean with once hot water cleaning, and the tightness of the finished product is good. After tin plating, wash twice with hot water to clean the surface with acid, and make the finished product bright.
3,Plum blossom falling wire machine with wire arrangement device, compared with other types of the same equipment, can make installing 20% more weight for each frame.
4, Use the freezer cooling which can save electricity.

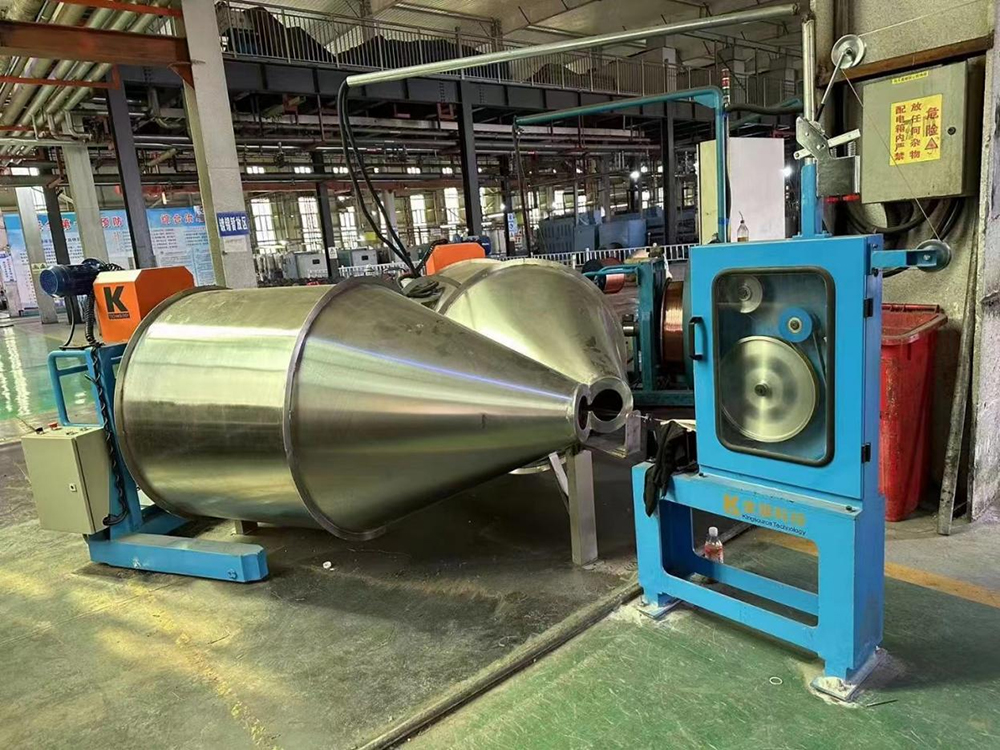

1.Double reel cone flyer

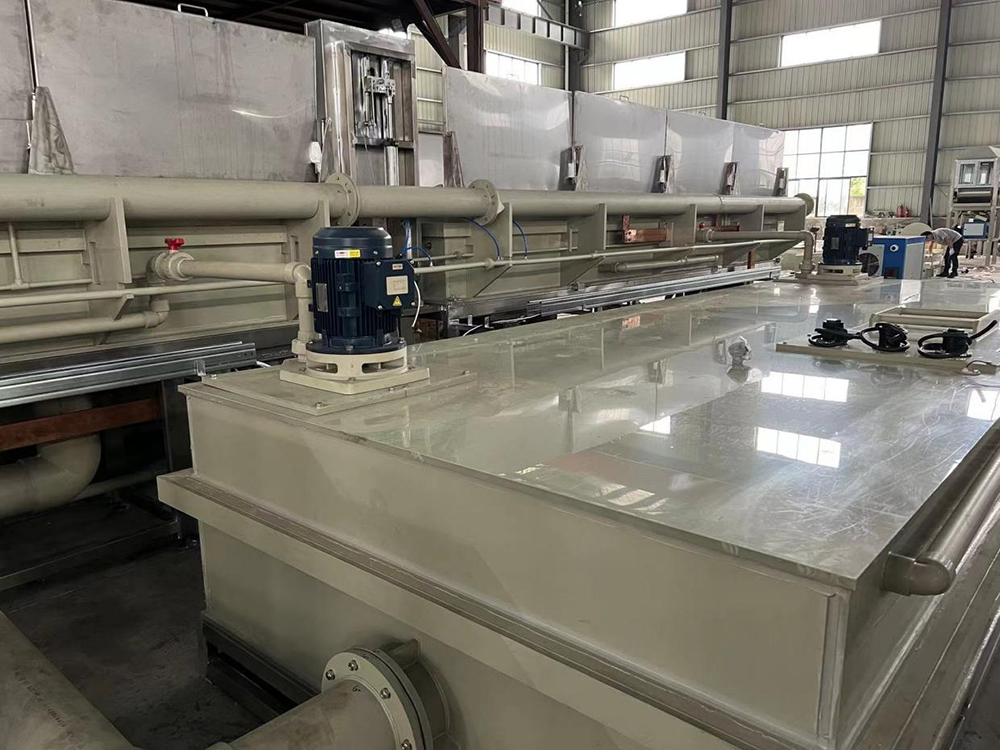

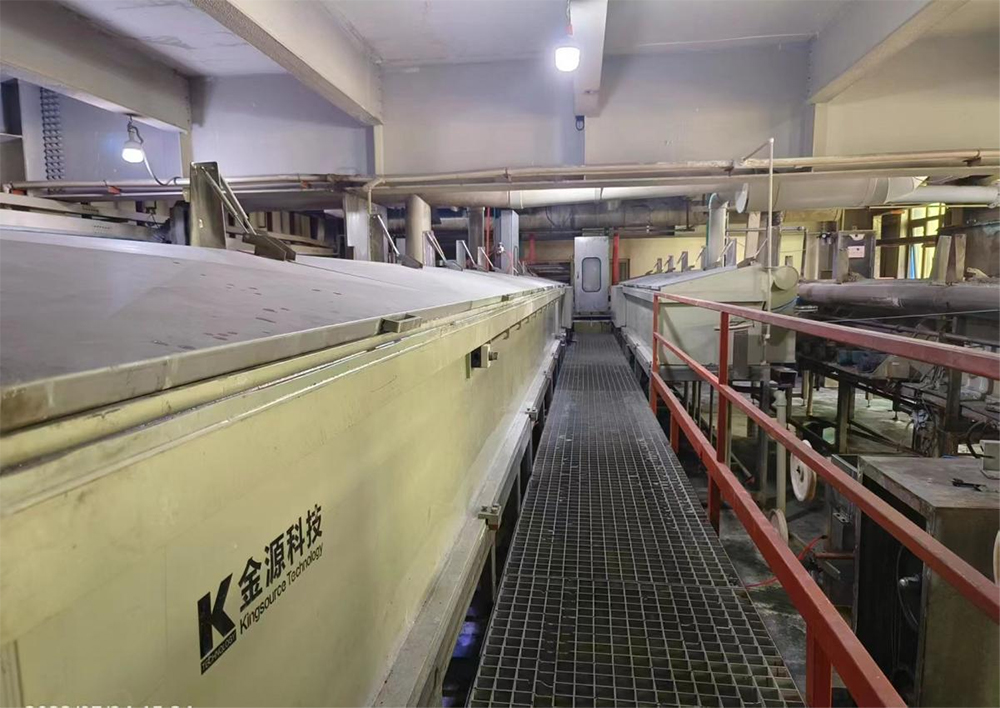

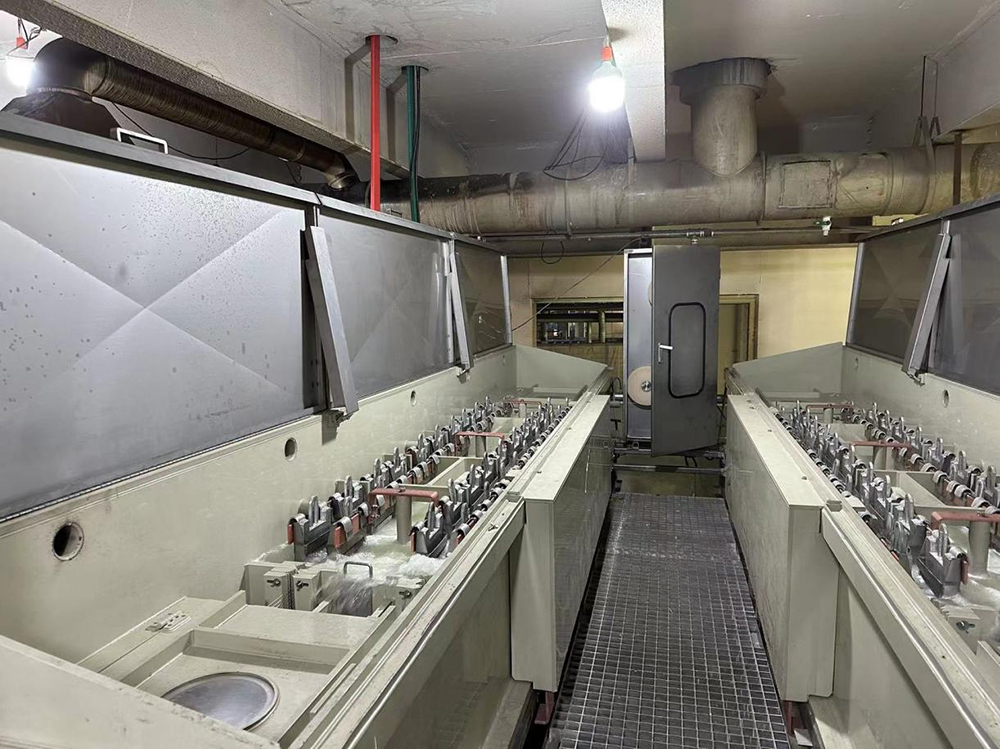

2.Electrolytic tin plating machine

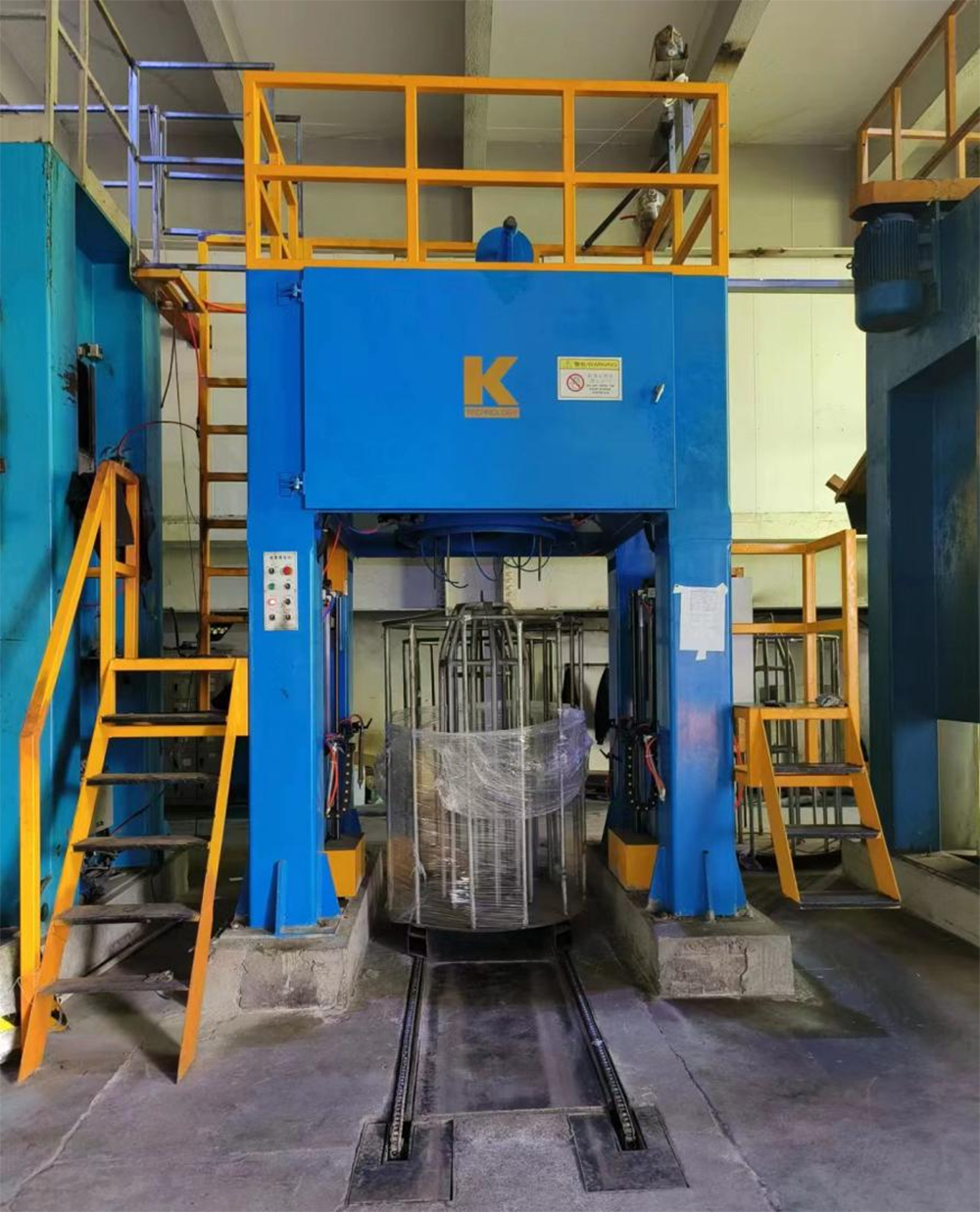

3.800 Barrel type take-up

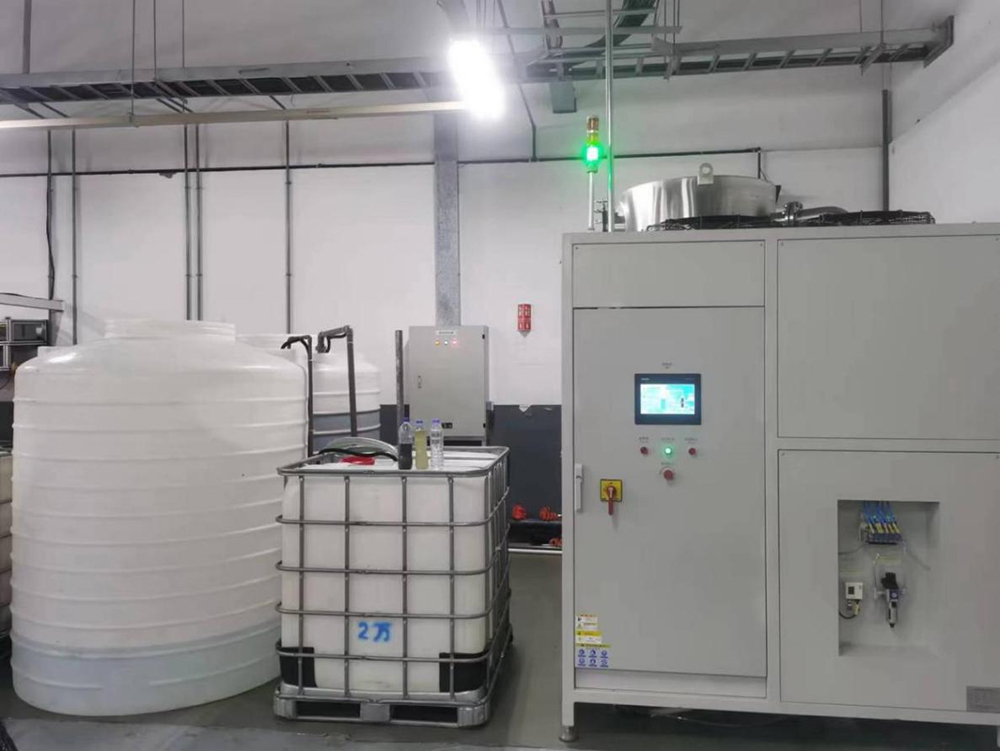

4. Wastewater treatment system

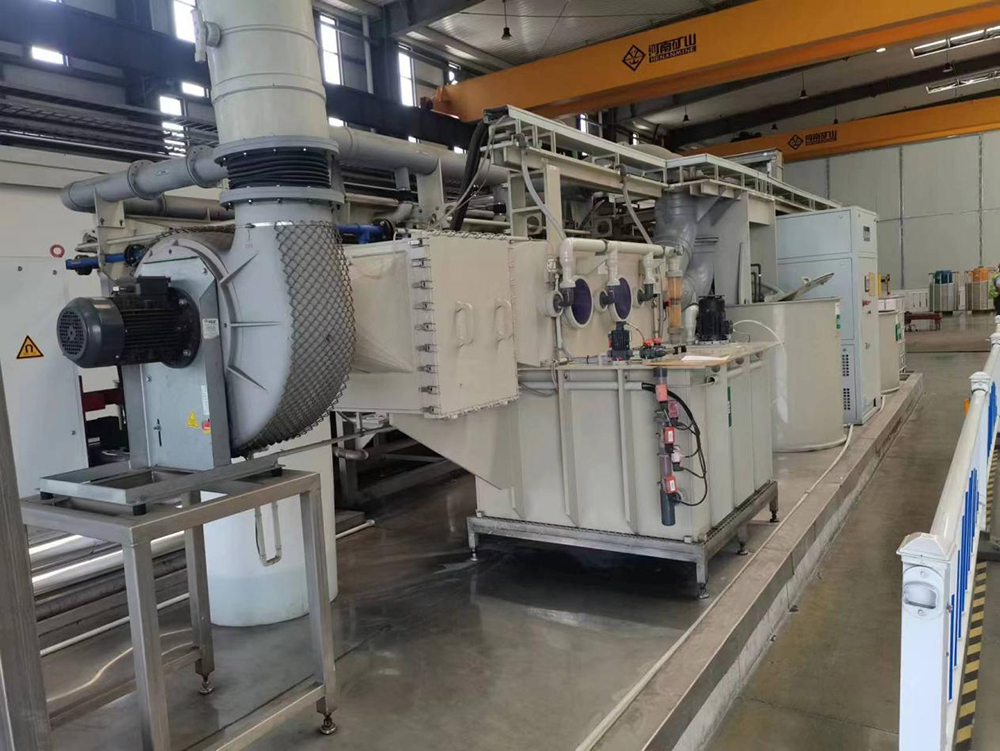

5.Waste air treatment system
